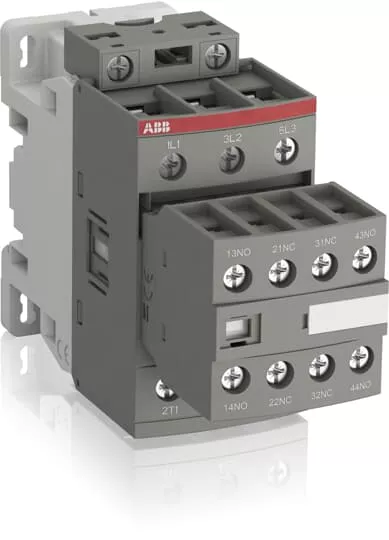

Stycznik AF38-30-22-12 48-130V50/60HZ-DC, 3P, 2NO+2NC
Information | Value |
---|---|
Supplier | ABB Sp. z o.o. (NN) |
Symbol | 1SBL297001R1222 |
GTIN(EAN) | 3471523111721 |
Price unit | piece |
Catalog price | 670,33 zł (544,98 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 360 g |
ETIM class: | Power contactor, AC switching |
Voltage type for actuating: | AC/DC |
Rated operation current Ie at AC-1, 400 V: | 50 A |
Rated operation current Ie at AC-3, 400 V: | 38 A |
Modular version: | no |
Number of auxiliary contacts as normally open contact: | 2 |
Number of auxiliary contacts as normally closed contact: | 2 |
Type of electrical connection of main circuit: | Screw connection |
Number of normally open contacts as main contact: | 3 |
Rated control supply voltage AC 50 Hz: | 48 - 130 V |
Rated control supply voltage AC 60 Hz: | 48 - 130 V |
Rated control supply voltage DC: | 48 - 130 V |
Rated operation power NEMA: | 18.6425 kW |
Number of normally closed contacts as main contact: | 0 |
