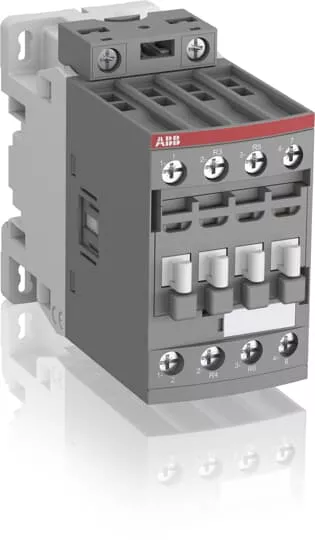

Stycznik AF38Z-22-00-20 12-20VDC
| Information | Value |
|---|---|
| Supplier | ABB Sp. z o.o. (NN) |
| Symbol | 1SBL296501R2000 |
| GTIN(EAN) | 3471523116900 |
| Price unit | piece |
| Catalog price | 1 394,14 zł (1 133,45 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 400 g |
| ETIM class: | Power contactor, AC switching |
| Voltage type for actuating: | DC |
| Rated operation current Ie at AC-1, 400 V: | 55 A |
| Rated operation current Ie at AC-3, 400 V: | 22 A |
| Modular version: | no |
| Type of electrical connection of main circuit: | Screw connection |
| Number of normally closed contacts as main contact: | 2 |
| Number of normally open contacts as main contact: | 2 |
| Rated control supply voltage DC: | 12 - 12 V |
| Number of auxiliary contacts as normally open contact: | 0 |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Operating voltage AC 50 Hz: | 690 - 690 V |
| Operating voltage AC 60 Hz: | 690 - 690 V |
| Rated operation power at AC-3, 400 V: | 11 kW |
| Width: | 45 mm |
| Height: | 86 mm |
| Depth: | 101 mm |
