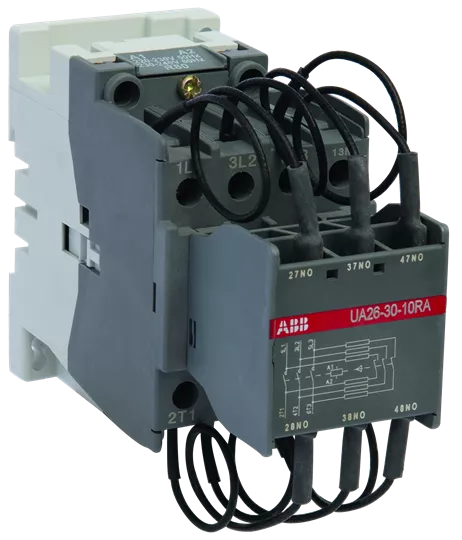

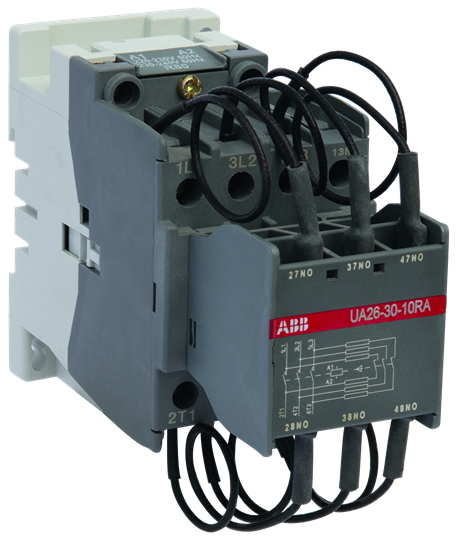

Stycznik UA26-30-10RA 220-230V 50Hz / 230-240V 60Hz
| Information | Value |
|---|---|
| Supplier | ABB Sp. z o.o. (NN) |
| Symbol | 1SBL241024R8010 |
| GTIN(EAN) | 3471522301802 |
| Price unit | piece |
| Catalog price | 903,59 zł (734,63 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 710 g |
| ETIM class: | Capacitor contactor |
| Rated control supply voltage AC 50 Hz: | 220 - 230 V |
| Rated control supply voltage AC 60 Hz: | 230 - 240 V |
| Voltage type for actuating: | AC |
| Number of auxiliary contacts as normally open contact: | 1 |
| Type of electrical connection of main circuit: | Screw connection |
| Number of normally open contacts as main contact: | 3 |
| Rated blind power at 400 V, 50 Hz: | 22 kvar |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Number of normally closed contacts as main contact: | 0 |
| Operating voltage AC 50 Hz: | 690 - 690 V |
| Operating voltage AC 60 Hz: | 690 - 690 V |
| Rated blind power at 400 V, 60 Hz: | 22 kvar |
| Width: | 54 mm |
| Height: | 120 mm |
| Depth: | 126.3 mm |
