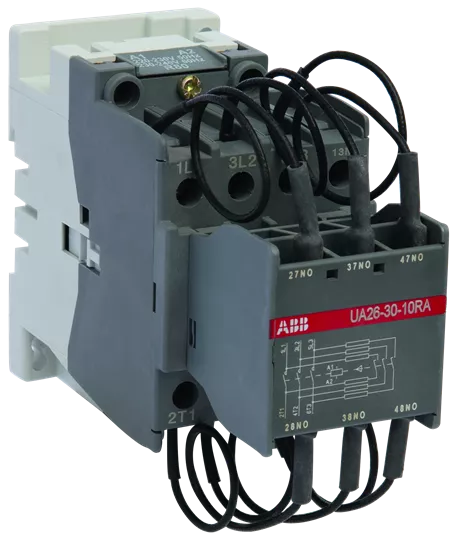

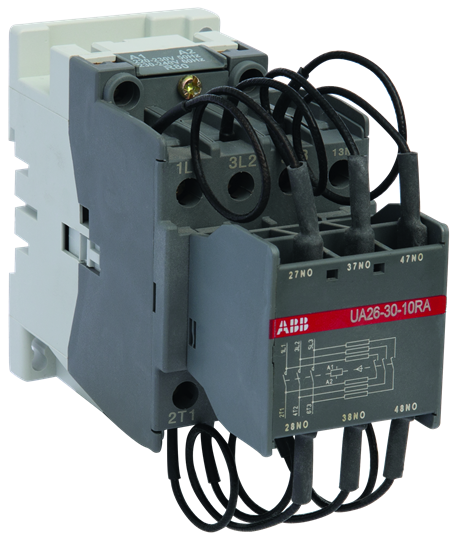

Stycznik UA26-30-10RA 230-240V 50Hz / 277V 60Hz
Information | Value |
---|---|
Supplier | ABB Sp. z o.o. (NN) |
Symbol | 1SBL241024R4210 |
GTIN(EAN) | 3471522301420 |
Price unit | piece |
Catalog price | 903,59 zł (734,63 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 710 g |
ETIM class: | Capacitor contactor |
Rated control supply voltage AC 50 Hz: | 230 - 240 V |
Voltage type for actuating: | AC |
Number of auxiliary contacts as normally open contact: | 1 |
Type of electrical connection of main circuit: | Screw connection |
Number of normally open contacts as main contact: | 3 |
Rated blind power at 400 V, 50 Hz: | 22 kvar |
Rated control supply voltage AC 60 Hz: | 277 - 277 V |
Number of auxiliary contacts as normally closed contact: | 0 |
Number of normally closed contacts as main contact: | 0 |
Operating voltage AC 50 Hz: | 690 - 690 V |
Operating voltage AC 60 Hz: | 690 - 690 V |
Rated blind power at 400 V, 60 Hz: | 22 kvar |
Width: | 54 mm |
Height: | 120 mm |
Depth: | 126.3 mm |
