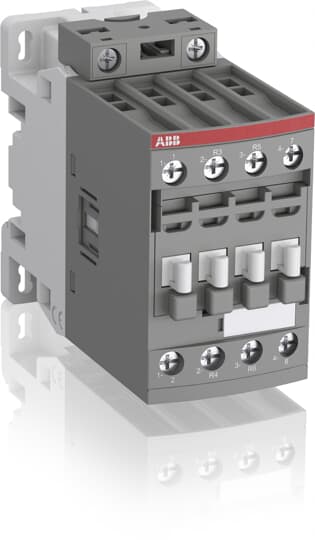

Stycznik AF26Z-22-00-21 24-60V50/60HZ 20-60VDC
Information | Value |
---|---|
Supplier | ABB Sp. z o.o. (NN) |
Symbol | 1SBL236501R2100 |
GTIN(EAN) | 3471523116818 |
Price unit | piece |
Catalog price | 684,91 zł (556,84 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 400 g |
ETIM class: | Power contactor, AC switching |
Voltage type for actuating: | AC/DC |
Rated operation current Ie at AC-1, 400 V: | 45 A |
Rated operation current Ie at AC-3, 400 V: | 22 A |
Modular version: | no |
Type of electrical connection of main circuit: | Screw connection |
Number of normally closed contacts as main contact: | 2 |
Number of normally open contacts as main contact: | 2 |
Rated control supply voltage AC 50 Hz: | 24 - 24 V |
Rated control supply voltage AC 60 Hz: | 24 - 24 V |
Rated control supply voltage DC: | 20 - 20 V |
Number of auxiliary contacts as normally open contact: | 0 |
Number of auxiliary contacts as normally closed contact: | 0 |
Operating voltage AC 50 Hz: | 690 - 690 V |
Operating voltage AC 60 Hz: | 690 - 690 V |
Rated operation power at AC-3, 400 V: | 11 kW |
Width: | 45 mm |
Height: | 86 mm |
Depth: | 101 mm |
