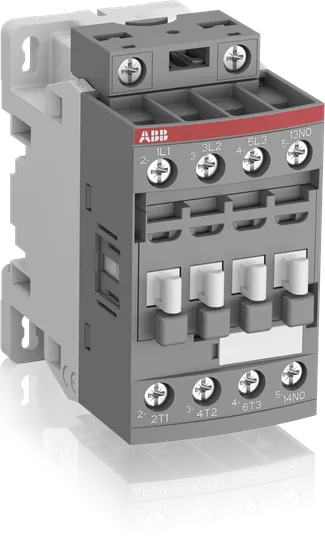

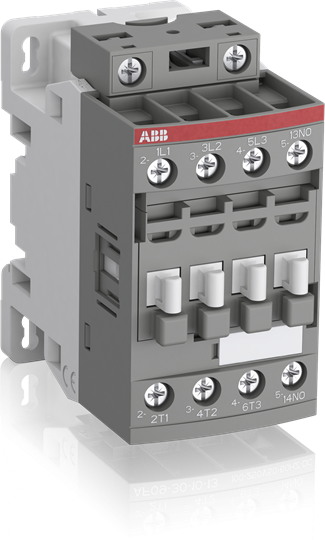

Stycznik AF16-30-01-13 100-250V50/60HZ-DC
| Information | Value |
|---|---|
| Supplier | ABB Sp. z o.o. (NN) |
| Symbol | 1SBL177001R1301 |
| GTIN(EAN) | 3471523110731 |
| Price unit | piece |
| Catalog price | 251,73 zł (204,66 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 270 g |
| ETIM class: | Power contactor, AC switching |
| Voltage type for actuating: | AC/DC |
| Rated operation current Ie at AC-1, 400 V: | 30 A |
| Rated operation current Ie at AC-3, 400 V: | 18 A |
| Modular version: | no |
| Number of auxiliary contacts as normally closed contact: | 1 |
| Type of electrical connection of main circuit: | Screw connection |
| Number of normally open contacts as main contact: | 3 |
| Rated control supply voltage AC 50 Hz: | 100 - 100 V |
| Rated control supply voltage AC 60 Hz: | 100 - 100 V |
| Rated control supply voltage DC: | 100 - 100 V |
| Number of auxiliary contacts as normally open contact: | 0 |
| Number of normally closed contacts as main contact: | 0 |
| Operating voltage AC 50 Hz: | 690 - 690 V |
| Operating voltage AC 60 Hz: | 690 - 690 V |
| Rated operation power at AC-3, 400 V: | 7.5 kW |
| Width: | 45 mm |
| Height: | 86 mm |
| Depth: | 77 mm |
