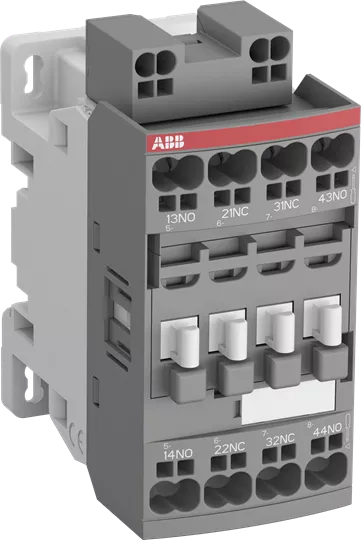

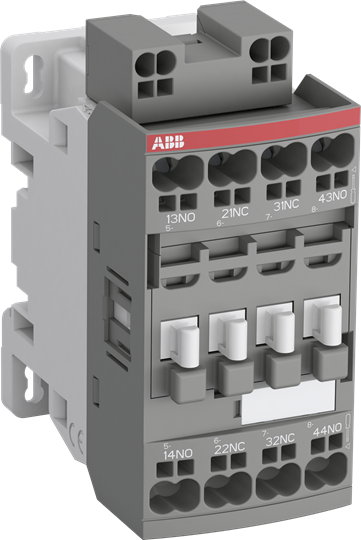

Przekaźnik stycznikowy NF31EK-13
| Information | Value |
|---|---|
| Supplier | ABB Sp. z o.o. (NN) |
| Symbol | 1SBH137005R1331 |
| GTIN(EAN) | 3471523152632 |
| Price unit | piece |
| Catalog price | 211,25 zł (171,75 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 285 g |
| ETIM class: | Contactor relay |
| Rated control supply voltage AC 50 Hz: | 100 - 250 V |
| Rated control supply voltage AC 60 Hz: | 100 - 250 V |
| Rated control supply voltage DC: | 100 - 250 V |
| Voltage type for actuating: | AC/DC |
| Rated operation current Ie, 400 V: | 3 A |
| Connection type auxiliary circuit: | Push-in clamp connection |
| Mounting method: | DIN-rail/screw |
| Interface: | no |
| Number of auxiliary contacts as normally closed contact: | 1 |
| Number of auxiliary contacts as normally open contact: | 3 |
| Number of auxiliary contacts as normally closed contact, delayed switching: | 0 |
| Number of auxiliary contacts as normally open contact, leading: | 0 |
| Number of auxiliary contacts as change-over contact: | 0 |
| With LED indication: | no |
| Suitable for manual operation: | no |
| Rated operation current: | 3 A |
| Operating voltage AC 50 Hz: | 690 - 690 V |
| Operating voltage AC 60 Hz: | 690 - 690 V |
| Operating voltage DC: | 6 - 6 V |
| Voltage type (operating voltage): | AC |
| Rated switch current: | 4 A |
| Width: | 45 mm |
| Height: | 92.3 mm |
| Depth: | 77 mm |
Unfortunately, this product is not available in any warehouse of any wholesaler of the EL-Plus group. However, you can contact the wholesaler of your choice and order it.
Order
Wholesaler
Address
Distance
Actions
Gniezno,
ul. Słoneczna 40a
Distance:
Limanowa,
ul. Tarnowska 9D
Distance:
Szaflary,
ul. Zakopiańska 18
Distance:
Additional information:
| Information | Value |
|---|---|
| Updated: | 2024-10-27 08:33:14 |
| Files to download: | |
| External links: |
