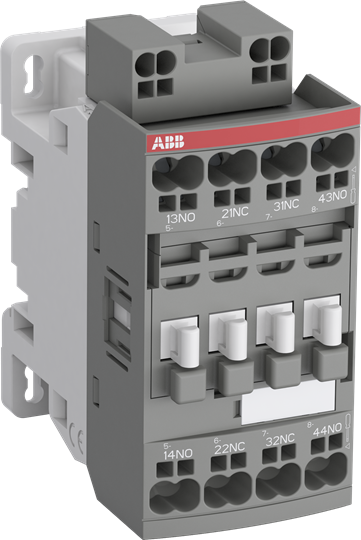

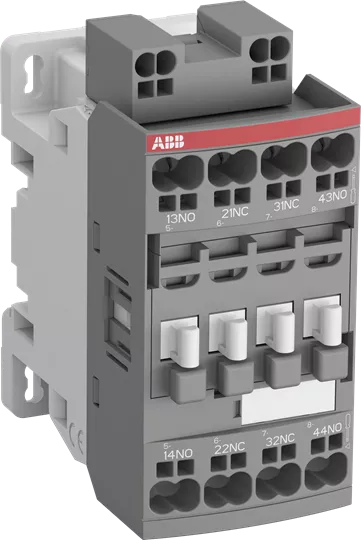

Przekaźnik stycznikowy NFZB22EK-22
Information | Value |
---|---|
Supplier | ABB Sp. z o.o. (NN) |
Symbol | 1SBH136063R2222 |
GTIN(EAN) | 3471523009646 |
Price unit | piece |
Catalog price | 514,80 zł (418,54 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 315 g |
ETIM class: | Contactor relay |
Rated control supply voltage AC 50 Hz: | 48 - 130 V |
Rated control supply voltage AC 60 Hz: | 48 - 130 V |
Rated control supply voltage DC: | 48 - 130 V |
Voltage type for actuating: | AC/DC |
Rated operation current Ie, 400 V: | 3 A |
Connection type auxiliary circuit: | Push-in clamp connection |
Mounting method: | DIN-rail/screw |
Interface: | no |
Number of auxiliary contacts as normally closed contact: | 2 |
Number of auxiliary contacts as normally open contact: | 2 |
Number of auxiliary contacts as normally closed contact, delayed switching: | 0 |
Number of auxiliary contacts as normally open contact, leading: | 0 |
Number of auxiliary contacts as change-over contact: | 0 |
With LED indication: | no |
Suitable for manual operation: | no |
Rated operation current: | 3 A |
Operating voltage AC 50 Hz: | 690 - 690 V |
Operating voltage AC 60 Hz: | 690 - 690 V |
Operating voltage DC: | 6 - 6 V |
Voltage type (operating voltage): | AC |
Rated switch current: | 4 A |
Width: | 45 mm |
Height: | 92.3 mm |
Depth: | 77 mm |
