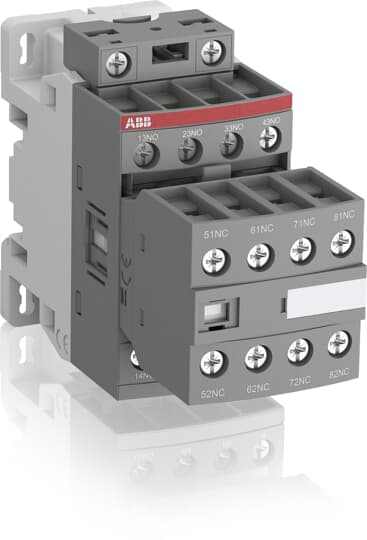

Przekaźnik stycznikowy NFZ53E-21 24-60V50/60HZ 20-60VDC
| Information | Value |
|---|---|
| Supplier | ABB Sp. z o.o. (NN) |
| Symbol | 1SBH136001R2153 |
| GTIN(EAN) | 3471523102217 |
| Price unit | piece |
| Catalog price | 303,17 zł (246,48 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 360 g |
| ETIM class: | Contactor relay |
| Rated control supply voltage AC 50 Hz: | 24 - 60 V |
| Rated control supply voltage AC 60 Hz: | 24 - 60 V |
| Rated control supply voltage DC: | 20 - 60 V |
| Voltage type for actuating: | AC/DC |
| Rated operation current Ie, 400 V: | 3 A |
| Connection type auxiliary circuit: | Screw connection |
| Mounting method: | DIN-rail/screw |
| Interface: | no |
| Number of auxiliary contacts as normally closed contact: | 3 |
| Number of auxiliary contacts as normally open contact: | 5 |
| With LED indication: | no |
| Suitable for manual operation: | no |
| Number of auxiliary contacts as normally closed contact, delayed switching: | 0 |
| Number of auxiliary contacts as normally open contact, leading: | 0 |
| Number of auxiliary contacts as change-over contact: | 0 |
| Rated operation current: | 3 A |
| Operating voltage AC 50 Hz: | 690 - 690 V |
| Operating voltage AC 60 Hz: | 690 - 690 V |
| Operating voltage DC: | 6 - 6 V |
| Voltage type (operating voltage): | AC |
| Rated switch current: | 4 A |
| Width: | 45 mm |
| Height: | 86 mm |
| Depth: | 110.5 mm |
