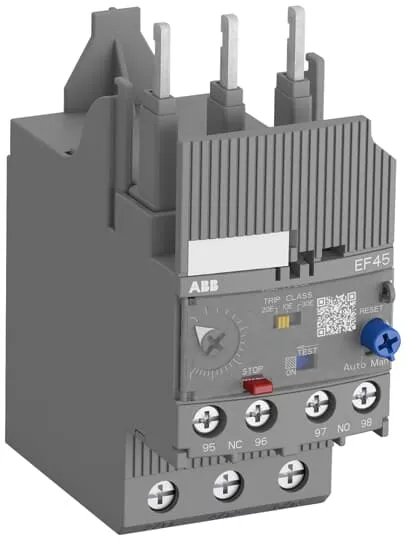

Elektroniczny przekaźnik przeciążeniowy EF45-45
| Information | Value |
|---|---|
| Supplier | ABB Sp. z o.o. (NN) |
| Symbol | 1SAX221001R1102 |
| GTIN(EAN) | 4013614403972 |
| Price unit | piece |
| Catalog price | 1 070,28 zł (870,15 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 362 g |
| ETIM class: | Electronic overload relay |
| Adjustable current range: | 15 - 45 A |
| Mounting method: | Direct attachment |
| Type of electrical connection of main circuit: | Screw connection |
| Number of auxiliary contacts as normally closed contact: | 1 |
| Number of auxiliary contacts as normally open contact: | 1 |
| Release class: | Adjustable |
| Reset function automatic: | yes |
| Reset function input: | no |
| Reset function push-button: | yes |
| Rated control supply voltage AC 50 Hz: | 0 - 0 V |
| Rated control supply voltage AC 60 Hz: | 0 - 0 V |
| Rated control supply voltage DC: | 0 - 0 V |
| Number of auxiliary contacts as change-over contact: | 0 |
| External power supply required: | no |
| Voltage type (operating voltage): | AC |
| Operating voltage AC 50 Hz: | 690 - 690 V |
| Operating voltage AC 60 Hz: | 690 - 690 V |
| Operating voltage DC: | 690 - 690 V |
| Rated switch current: | 45 A |
| Width: | 45 mm |
| Height: | 104.7 mm |
| Depth: | 86 mm |
