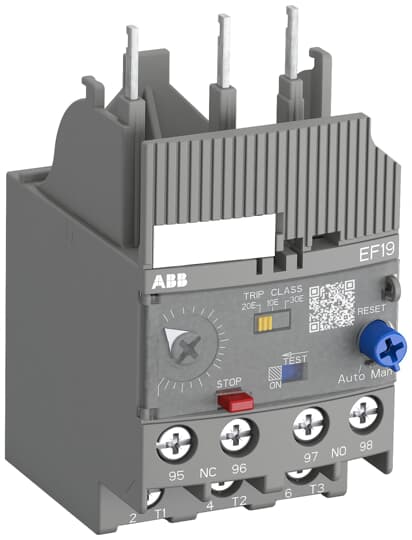

Elektroniczny przekaźnik przeciążeniowy EF19-18.9
| Information | Value |
|---|---|
| Supplier | ABB Sp. z o.o. (NN) |
| Symbol | 1SAX121001R1105 |
| GTIN(EAN) | 4013614404023 |
| Price unit | piece |
| Catalog price | 590,61 zł (480,17 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 158 g |
| ETIM class: | Electronic overload relay |
| Adjustable current range: | 5.7 - 18.9 A |
| Mounting method: | Direct attachment |
| Type of electrical connection of main circuit: | Screw connection |
| Number of auxiliary contacts as normally closed contact: | 1 |
| Number of auxiliary contacts as normally open contact: | 1 |
| Release class: | Adjustable |
| Reset function automatic: | yes |
| Reset function input: | no |
| Reset function push-button: | yes |
| Rated control supply voltage AC 50 Hz: | 0 - 0 V |
| Rated control supply voltage AC 60 Hz: | 0 - 0 V |
| Rated control supply voltage DC: | 0 - 0 V |
| Number of auxiliary contacts as change-over contact: | 0 |
| External power supply required: | no |
| Voltage type (operating voltage): | AC |
| Operating voltage AC 50 Hz: | 690 - 690 V |
| Operating voltage AC 60 Hz: | 690 - 690 V |
| Operating voltage DC: | 690 - 690 V |
| Rated switch current: | 18.9 A |
| Width: | 44.4 mm |
| Height: | 85 mm |
| Depth: | 59.3 mm |
