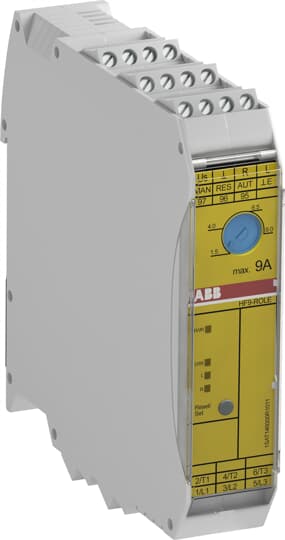

HF9-ROLE-24VDC sterownik
| Information | Value |
|---|---|
| Supplier | ABB Sp. z o.o. (NN) |
| Symbol | 1SAT146000R1011 |
| GTIN(EAN) | 4013614515538 |
| Price unit | piece |
| Catalog price | 2 012,26 zł (1 635,98 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 289 g |
| ETIM class: | Motor starter/motor starter combination |
| Type of motor starter: | Reversing starter |
| With short-circuit release: | no |
| Rated operation power at AC-3, 230 V, 3-phase: | 1.50 kW |
| Rated operation power at AC-3, 400 V: | 3 kW |
| Rated operation current Ie: | 9 A |
| Rated operation current at AC-3, 400 V: | 6.5 A |
| Overload release current setting: | 1.5 - 9.0 A |
| Ambient temperature, upper operating limit: | 80 °C |
| Temperature compensated overload protection: | yes |
| Rail mounting possible: | yes |
| With transformer: | no |
| Number of command positions: | 16 |
| Suitable for emergency stop: | no |
| Number of indicator lights: | 4 |
| External reset possible: | yes |
| With fuse: | no |
| Supporting protocol for TCP/IP: | no |
| Supporting protocol for PROFIBUS: | no |
| Supporting protocol for CAN: | no |
| Supporting protocol for INTERBUS: | no |
| Supporting protocol for ASI: | no |
| Supporting protocol for Modbus: | no |
| Supporting protocol for Data-Highway: | no |
| Supporting protocol for DeviceNet: | no |
| Supporting protocol for SUCONET: | no |
| Supporting protocol for LON: | no |
| Supporting protocol for PROFINET IO: | no |
| Supporting protocol for PROFINET CBA: | no |
| Supporting protocol for SERCOS: | no |
| Supporting protocol for Foundation Fieldbus: | no |
| Supporting protocol for EtherNet/IP: | no |
| Supporting protocol for AS-Interface Safety at Work: | no |
| Supporting protocol for DeviceNet Safety: | no |
| Supporting protocol for INTERBUS-Safety: | no |
| Supporting protocol for PROFIsafe: | no |
| Supporting protocol for SafetyBUS p: | no |
| Supporting protocol for other bus systems: | no |
| Rated control supply voltage AC 50 Hz: | 0 - 0 V |
| Rated control supply voltage AC 60 Hz: | 0 - 0 V |
| Rated control supply voltage DC: | 24 - 24 V |
| Power consumption: | 14.6 W |
