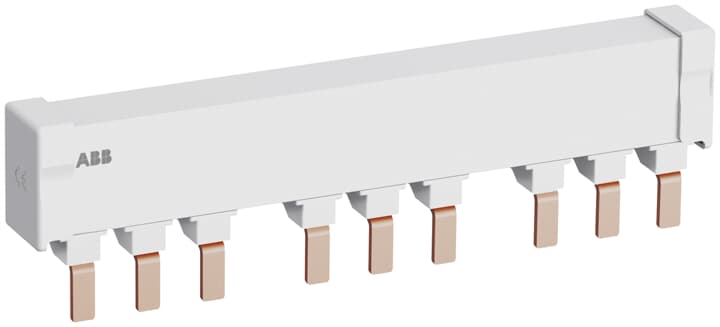

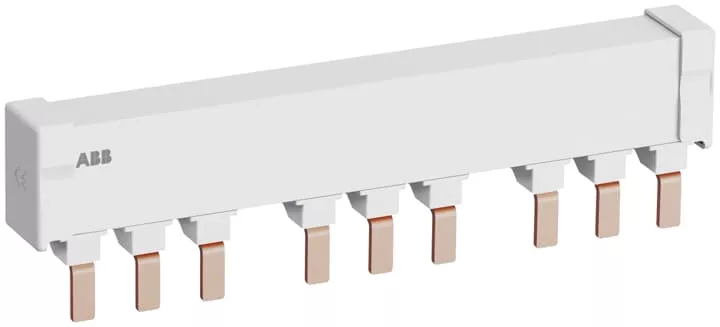

Szyna łączeniowa PS2-3-0-125
| Information | Value |
|---|---|
| Supplier | ABB Sp. z o.o. (NN) |
| Symbol | 1SAM401920R1003 |
| GTIN(EAN) | 4013614502170 |
| Price unit | piece |
| Catalog price | 218,82 zł (177,90 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 162 g |
| ETIM class: | Phase busbar |
| Number of phases: | 3 |
| Number of poles: | 9 |
| Suitable for number of devices: | 3 |
| Module width: | 18 mm |
| Cross section: | 25 mm² |
| Length: | 170 mm |
| Width in number of modular spacings: | 9.71 |
| Rated permanent current Iu: | 125 A |
| Type of electric connection: | Pin |
| Insulated: | yes |
| Rated surge voltage: | 8 kV |
| Conditioned rated short-circuit current Iq: | 100 kA |
| Max. rated operation voltage Ue: | 690 V |
| Rated short-time withstand current lcw: | 100 kA |
| Suitable for devices with N-conductor: | no |
| Suitable for devices with auxiliary switch: | no |
| Colour: | Grey |
| Can be cut to size: | no |
