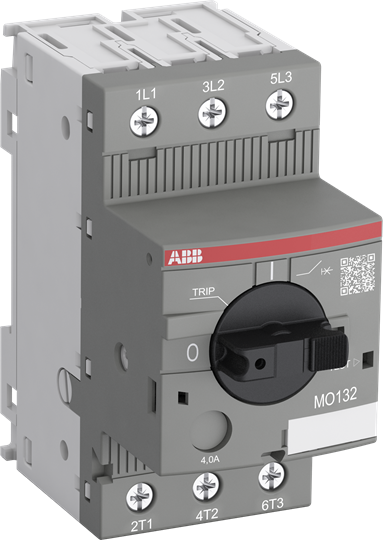

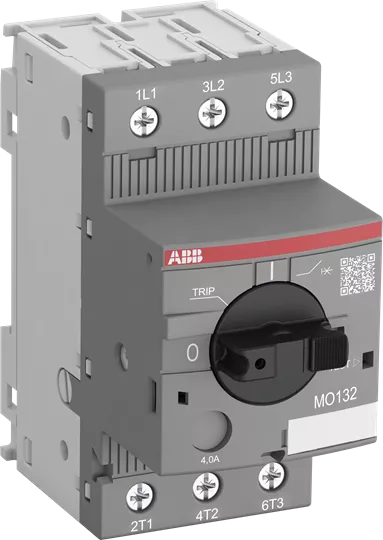

Wyłącznik silnikowy MO132-1.0
Information | Value |
---|---|
Supplier | ABB Sp. z o.o. (NN) |
Symbol | 1SAM360000R1005 |
GTIN(EAN) | 4013614400209 |
Price unit | piece |
Catalog price | 294,35 zł (239,31 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 215 g |
ETIM class: | Motor protection circuit-breaker |
With thermal overload protection: | no |
Phase failure sensitive: | no |
Switch off technique: | Magnetic |
Rated permanent current Iu: | 1 A |
Rated operation power at AC-3, 400 V: | 0.25 kW |
Type of electrical connection of main circuit: | Screw connection |
Type of control element: | Turn button |
Device construction: | Complete device in housing |
With integrated auxiliary switch: | no |
With integrated under voltage release: | no |
Number of poles: | 3 |
Rated short-circuit breaking capacity lcu at 400 V, AC: | 100 kA |
Degree of protection (IP): | IP20 |
Height: | 90 mm |
Width: | 45 mm |
Depth: | 86.75 mm |
Overload release current setting: | 1 - 1 A |
Adjustment range undelayed short-circuit release: | 12.5 - 12.5 A |
Rated operating voltage: | 690 - 690 V |
Rated operation power at AC-3, 230 V: | 0.25 kW |
