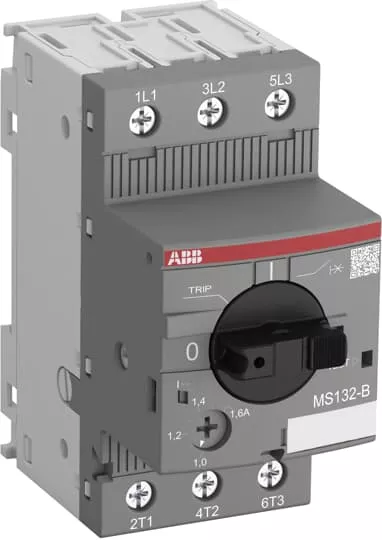

Wyłącznik silnikowy MS132-10B
Information | Value |
---|---|
Supplier | ABB Sp. z o.o. (NN) |
Symbol | 1SAM350200R1010 |
GTIN(EAN) | 4013614521409 |
Price unit | piece |
Catalog price | 525,92 zł (427,58 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 265 g |
ETIM class: | Motor protection circuit-breaker |
Overload release current setting: | 6.3 - 10 A |
With thermal overload protection: | yes |
Phase failure sensitive: | yes |
Switch off technique: | Thermomagnetic |
Rated operating voltage: | 250 - 690 V |
Rated permanent current Iu: | 10 A |
Rated operation power at AC-3, 400 V: | 4 kW |
Type of electrical connection of main circuit: | Screw connection |
Type of control element: | Turn button |
Device construction: | Complete device in housing |
With integrated auxiliary switch: | no |
With integrated under voltage release: | no |
Number of poles: | 3 |
Rated short-circuit breaking capacity lcu at 400 V, AC: | 100 kA |
Degree of protection (IP): | IP20 |
Height: | 90 mm |
Width: | 45 mm |
Depth: | 86.75 mm |
Adjustment range undelayed short-circuit release: | 150 - 150 A |
Rated operation power at AC-3, 230 V: | 4 kW |
