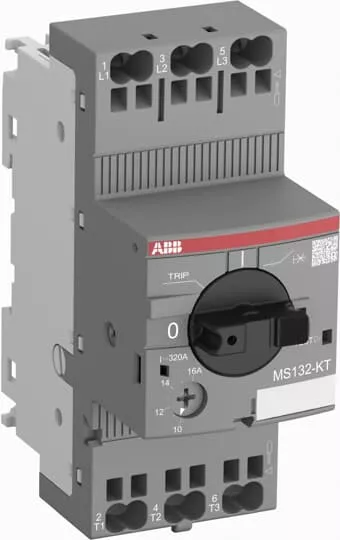

Wyłącznik silnikowy MS132-16KT
| Information | Value |
|---|---|
| Supplier | ABB Sp. z o.o. (NN) |
| Symbol | 1SAM340010R1011 |
| GTIN(EAN) | 4013614535215 |
| Price unit | piece |
| Catalog price | 389,84 zł (316,94 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 316 g |
| ETIM class: | Power circuit-breaker for trafo/generator/installation protection |
| Rated permanent current Iu: | 16 A |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz: | 100 kA |
| Overload release current setting: | 10 - 16 A |
| Integrated earth fault protection: | no |
| Type of electrical connection of main circuit: | Spring clamp connection |
| Device construction: | Complete device in housing |
| Suitable for DIN rail (top hat rail) mounting: | yes |
| DIN rail (top hat rail) mounting optional: | yes |
| With switched-off indicator: | yes |
| Number of poles: | 3 |
| Position of connection for main current circuit: | Front side |
| Type of control element: | Turn button |
| Complete device with protection unit: | yes |
| Motor drive integrated: | no |
| Motor drive optional: | no |
| Degree of protection (IP): | IP20 |
| Rated voltage: | 690 - 690 V |
| Adjustment range undelayed short-circuit release: | 320 - 320 A |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Number of auxiliary contacts as normally open contact: | 0 |
| Number of auxiliary contacts as change-over contact: | 0 |
| Power loss: | 6.9 W |
Unfortunately, this product is not available in any warehouse of any wholesaler of the EL-Plus group. However, you can contact the wholesaler of your choice and order it.
Order
Wholesaler
Address
Distance
Actions
Gniezno,
ul. Słoneczna 40a
Distance:
Szaflary,
ul. Zakopiańska 18
Distance:
Limanowa,
ul. Tarnowska 9D
Distance:
Additional information:
| Information | Value |
|---|---|
| Updated: | 2024-10-28 13:55:52 |
| Files to download: | |
| External links: |
