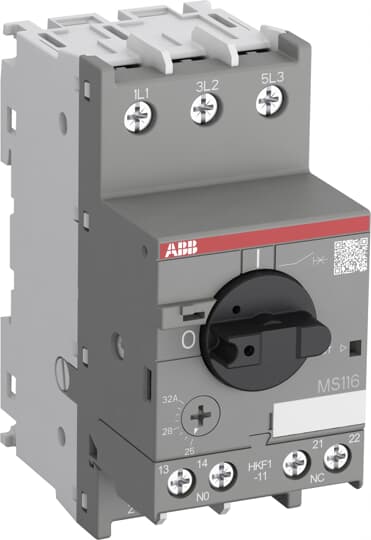

Wyłącznik silnikowy ze stykami pomocniczymi MS116-20+HKF1-11
Information | Value |
---|---|
Supplier | ABB Sp. z o.o. (NN) |
Symbol | 1SAM250005R1013 |
GTIN(EAN) | 4013614405624 |
Price unit | piece |
Catalog price | 451,13 zł (366,77 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 326 g |
ETIM class: | Motor protection circuit-breaker |
Overload release current setting: | 16 - 20 A |
With thermal overload protection: | yes |
Phase failure sensitive: | yes |
Switch off technique: | Thermomagnetic |
Rated permanent current Iu: | 20 A |
Rated operation power at AC-3, 400 V: | 7.5 kW |
Type of electrical connection of main circuit: | Screw connection |
Type of control element: | Turn button |
Device construction: | Complete device in housing |
With integrated auxiliary switch: | yes |
With integrated under voltage release: | no |
Number of poles: | 3 |
Rated short-circuit breaking capacity lcu at 400 V, AC: | 16 kA |
Degree of protection (IP): | IP20 |
Height: | 97.8 mm |
Width: | 45 mm |
Depth: | 85.4 mm |
Adjustment range undelayed short-circuit release: | 300 - 300 A |
Rated operating voltage: | 690 - 690 V |
Rated operation power at AC-3, 230 V: | 7.5 kW |
Power loss: | 6.9 W |
