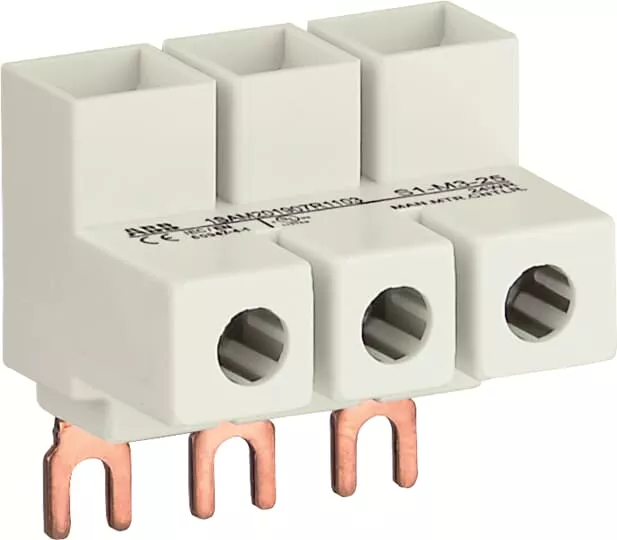

Blok zasilający S1-M3-25
| Information | Value |
|---|---|
| Supplier | ABB Sp. z o.o. (NN) |
| Symbol | 1SAM201907R1103 |
| GTIN(EAN) | 4013614400827 |
| Price unit | piece |
| Catalog price | 84,83 zł (68,97 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 42 g |
| ETIM class: | Main line branch terminal |
| Number of poles: | 3 |
| Nominal current: | 65 A |
| Connection type: | Screwing |
| Mounting method: | Screw |
| Number of inputs: | 3 |
| Number of outputs: | 3 |
| Suitable for solid conductors: | yes |
| Suitable for stranded conductors: | yes |
| Suitable for fine strand conductors: | yes |
| Suitable for fine strand conductors without cable end sleeve: | yes |
| Suitable for extra fine-strand conductors: | yes |
| Suitable for extra fine-strand conductors without cable end sleeve: | yes |
| Conductor cross section, input: | 2.5 - 25 mm² |
| Conductor cross section, output: | 2.5 - 25 mm² |
| Conductor cross section, input AWG: | 14 - 4 |
| Contact safe: | yes |
| Height: | 43.95 mm |
| Width: | 43.8 mm |
| Depth: | 32 mm |
