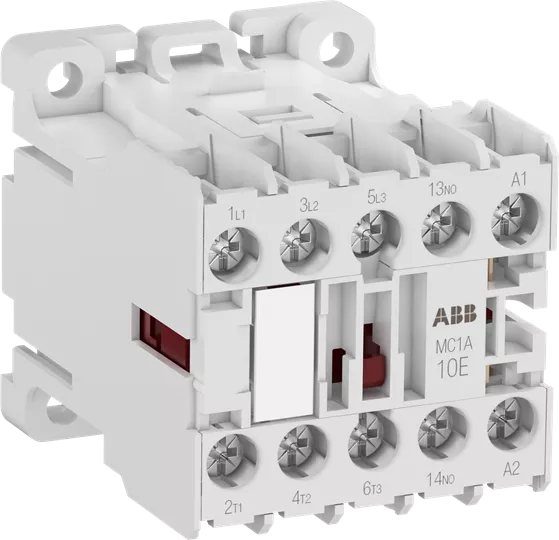

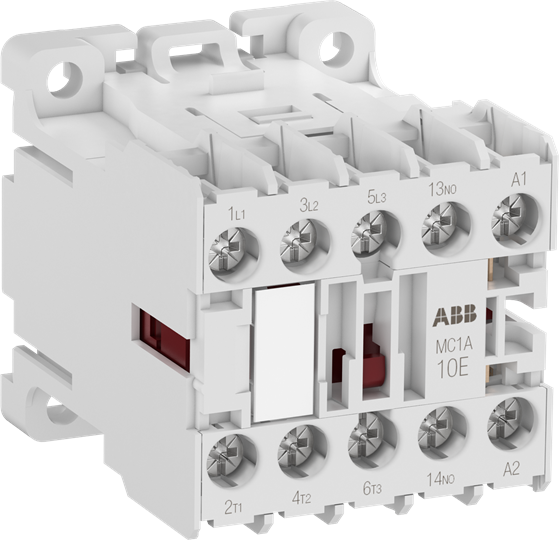

Mini stycznik MC1A301ATN
| Information | Value |
|---|---|
| Supplier | ABB Sp. z o.o. (NN) |
| Symbol | 1SAL100224R9901 |
| GTIN(EAN) | 4013614541490 |
| Price unit | piece |
| Catalog price | 178,55 zł (145,16 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 170 g |
| ETIM class: | Power contactor, AC switching |
| Rated control supply voltage AC 50 Hz: | 220 - 277 V |
| Voltage type for actuating: | AC |
| Rated operation power at AC-3, 400 V: | 4 kW |
| Rated operation current Ie at AC-4, 400 V: | 9 A |
| Rated operation power at AC-4, 400 V: | 4 kW |
| Rated operation power NEMA: | 2.2371 kW |
| Modular version: | no |
| Number of auxiliary contacts as normally closed contact: | 1 |
| Type of electrical connection of main circuit: | Screw connection |
| Number of normally open contacts as main contact: | 3 |
| Rated control supply voltage AC 60 Hz: | 220 - 220 V |
| Number of auxiliary contacts as normally open contact: | 0 |
| Number of normally closed contacts as main contact: | 0 |
| Operating voltage AC 50 Hz: | 440 - 690 V |
| Operating voltage AC 60 Hz: | 440 - 690 V |
| Rated operation current Ie at AC-1, 400 V: | 20 A |
| Rated operation current Ie at AC-3, 400 V: | 9 A |
| Width: | 45 mm |
| Height: | 48 mm |
| Depth: | 56 mm |
Unfortunately, this product is not available in any warehouse of any wholesaler of the EL-Plus group. However, you can contact the wholesaler of your choice and order it.
