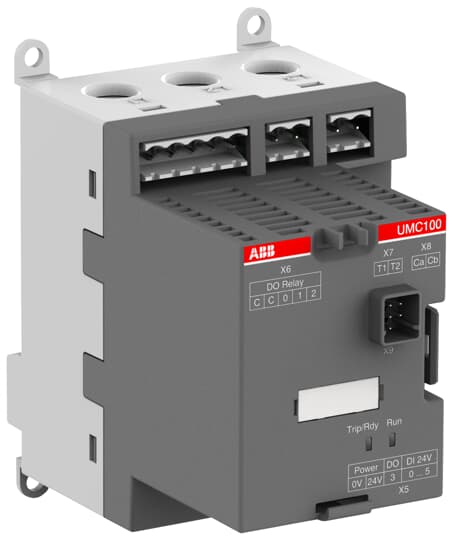

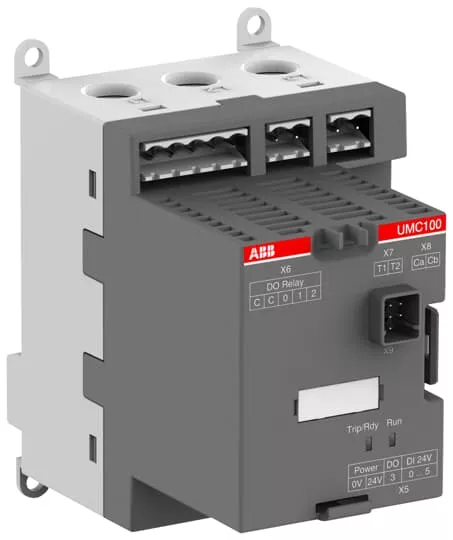

UMC100.3 110-240 VAC/DC uniwersalny sterownik silników
| Information | Value |
|---|---|
| Supplier | ABB Sp. z o.o. (NN) |
| Symbol | 1SAJ530000R1100 |
| GTIN(EAN) | 4013614496929 |
| Price unit | piece |
| Catalog price | 5 292,60 zł (4 302,93 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 315 g |
| ETIM class: | Motor management device |
| Rated voltage Ue at AC 50 Hz: | 690 - 1000 V |
| Rated voltage Ue at AC 60 Hz: | 690 - 1000 V |
| Rated operating frequency: | 50 - 60 Hz |
| Current detection module: | yes |
| Voltage detection module: | yes |
| Type of connection system: | Through-feed technique |
| Input for thermistor connection: | yes |
| Input for earth fault detection: | yes |
| Input for analogue temperature sensor: | yes |
| Switching function: | Mono stable |
| Type of electrical connection for auxiliary- and control current circuit: | Screw connection |
| Type of interface: | PROFIBUS |
| Degree of protection (IP): | IP20 |
| Degree of protection (NEMA): | Other |
| Rated operation current Ie: | 63 - 63 A |
| Number of analogue inputs: | 0 |
| Number of analogue outputs: | 0 |
| Number of outputs, with contact: | 0 |
| Number of electronic outputs: | 0 |
| Number of digital inputs: | 0 |
| Voltage type (supply voltage): | AC/DC |
| Supply voltage AC 50 Hz: | 110 - 240 V |
| Supply voltage AC 60 Hz: | 110 - 240 V |
| Type of voltage measuring range: | AC |
| Voltage measuring range: | 0 - 690 V |
| Width: | 70 mm |
| Height: | 106 mm |
| Depth: | 107 mm |
