Ogranicznik przepięć DEHNguard ME DC Y 1000 FM DG ME DC Y 1000 FM
| Information | Value |
|---|---|
| Supplier | DEHN Polska Sp. z o.o. |
| Symbol | 972147 |
| GTIN(EAN) | 4013364519817 |
| Price unit | piece |
| Catalog price | 3 025,79 zł (2 459,99 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 497 g |
| Country of origin | Niemcy |
| ETIM class: | Combined arrester for power supply systems |
| System configuration DC: | yes |
| System configuration IT: | no |
| System configuration TN: | no |
| System configuration TN-C: | no |
| System configuration TN-C-S: | no |
| System configuration TN-S: | no |
| System configuration TT: | no |
| System configuration other: | no |
| Number of poles: | 3 |
| Lightning impulse current (10/350 µs): | 5 kA |
| Max. continuous voltage DC: | 1000 V |
| Nominal voltage DC: | 860 V |
| Voltage protection level (DC+ - DC-): | 3.75 kV |
| Voltage protection level (DC+/DC- - PE): | 2.5 kV |
| Mounting method: | DIN rail (top hat rail) 35 mm |

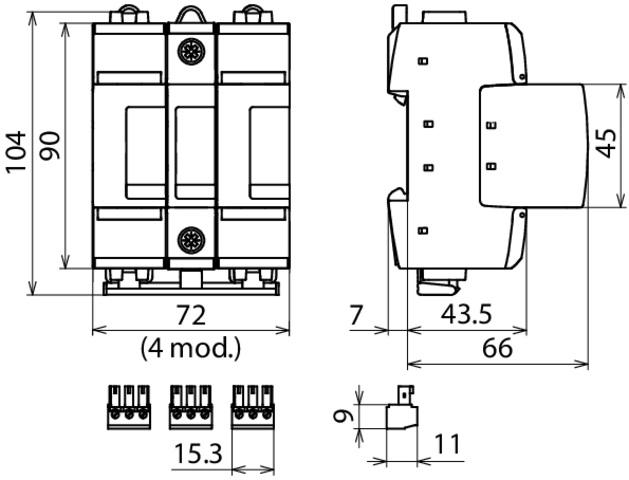

| Construction size: | 4 modular spacing |
| Max. conductor cross section solid (solid, stranded): | 35 mm² |
| Max. conductor cross section flexible (fine-strand): | 25 mm² |
| Remote signalling: | yes |
| Signalling at the device: | Optical |
| Test class: | Type 1 + 2 |
| Integrated backup fuse: | no |
| Energy-coordinated protection effect with regard to the terminal equipment: | no |
| Voltage switching spark gap technology: | no |
| Overcurrent protected voltage tapping: | no |
| Degree of protection (IP): | IP20 |
