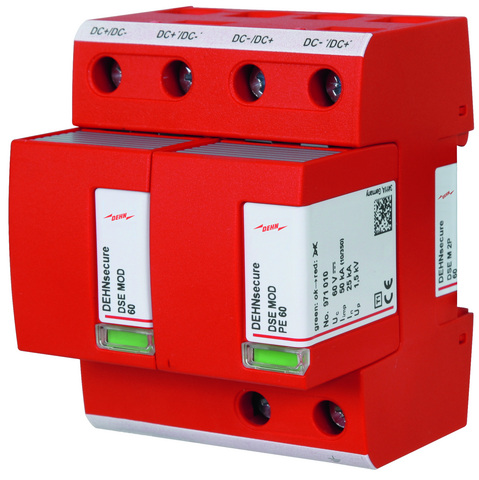

Ogranicznik przepięć DEHNsecure M 2P 60 DSE M 2P 60
| Information | Value |
|---|---|
| Supplier | DEHN Polska Sp. z o.o. |
| Symbol | 971221 |
| GTIN(EAN) | 4013364138612 |
| Price unit | piece |
| Catalog price | 4 623,37 zł (3 758,84 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 638 g |
| Country of origin | Niemcy |
| ETIM class: | Lightning current arrester for power supply systems |
| System configuration DC: | yes |
| System configuration IT: | no |
| System configuration TN: | no |
| System configuration TN-C: | no |
| System configuration TN-C-S: | no |
| System configuration TN-S: | no |
| System configuration TT: | no |
| System configuration other: | no |
| Number of conductors (without earthing): | 2 |
| Lightning impulse current (10/350 µs): | 25 kA |
| Max. continuous voltage DC: | 60 V |
| Voltage protection level: | 1.5 kV |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Construction size: | 4 modular spacing |
| Max. conductor cross section solid (solid, stranded): | 50 mm² |
| Max. conductor cross section flexible (fine-strand): | 35 mm² |
| With remote signalling contact: | no |
| Exhausting: | no |
| Signalling at the device: | Optical |
| Category type 1: | yes |
| Integrated backup fuse: | no |
| Suitable for outdoor use: | no |
| Degree of protection (IP): | IP20 |
