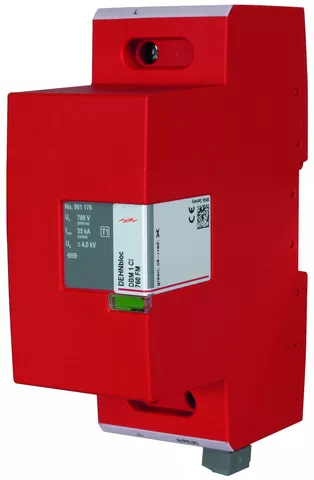

Ogranicznik przepięć DEHNbloc Maxi 1 CI 760 FM DBM 1 CI 760 FM
Information | Value |
---|---|
Supplier | DEHN Polska Sp. z o.o. |
Symbol | 961176 |
GTIN(EAN) | 4013364250123 |
Price unit | piece |
Catalog price | 3 903,33 zł (3 173,44 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Gross weight: | 1,17 kg |
ETIM class: | Lightning current arrester for power supply systems |
System configuration DC: | no |
System configuration IT: | yes |
System configuration TN: | yes |
System configuration TN-C: | yes |
System configuration TN-C-S: | yes |
System configuration TN-S: | yes |
System configuration TT: | yes |
System configuration other: | no |
Number of conductors (without earthing): | 1 |
Lightning impulse current (10/350 µs): | 35 kA |
Max. continuous voltage AC: | 760 V |
Nominal voltage AC: | 690 V |
Voltage protection level: | 4 kV |
Follow current extinguishing capability: | 25 kA |
Specific energy (W/R): | 306.25 kJ/Ω |
Mounting method: | DIN rail (top hat rail) 35 mm |
Construction size: | 3 modular spacing |
Max. conductor cross section solid (solid, stranded): | 50 mm² |
Max. conductor cross section flexible (fine-strand): | 35 mm² |
With remote signalling contact: | yes |
Exhausting: | no |
Signalling at the device: | Optical |
Category type 1: | yes |
Integrated backup fuse: | yes |
Suitable for outdoor use: | no |
Degree of protection (IP): | IP20 |
