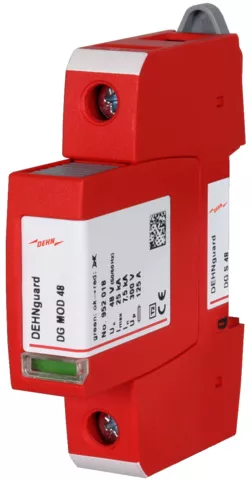

Ogranicznik przepięć DEHNguard S 48 DG S 48
Information | Value |
---|---|
Supplier | DEHN Polska Sp. z o.o. |
Symbol | 952078 |
GTIN(EAN) | 4013364119468 |
Price unit | piece |
Catalog price | 622,34 zł (505,97 zł + 23% VAT) |
Sale price | from 201,17 zł / szt. (163,55 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Gross weight: | 120,1 g |
ETIM class: | Surge protection device for power supply systems |
System configuration DC: | no |
System configuration IT: | no |
System configuration TN: | yes |
System configuration TN-C: | yes |
System configuration TN-C-S: | yes |
System configuration TN-S: | yes |
System configuration TT: | yes |
System configuration other: | no |
Number of conductors (without earthing): | 1 |
Nominal discharge surge current (8/20): | 7.5 kA |
Max. discharge surge current (8/20): | 25 kA |
Nominal voltage AC: | 42 V |
Max. continuous voltage AC: | 48 V |
Max. continuous voltage DC: | 60 V |
Voltage protection level: | 0.33 kV |
Max. overcurrent protection device, parallel connection (fuse): | 125 A |
Max. overcurrent protection device, series connection (fuse): | 100 A |
Short-circuit breaking capacity (Isccr): | 50 kA |
Integrated short-circuit protection: | no |
Integrated backup fuse: | no |
Leakage-current free: | no |
Mounting method: | DIN rail (top hat rail) 35 mm |
Construction size: | 1 modular spacing |
Max. conductor cross section solid (solid, stranded): | 35 mm² |
Max. conductor cross section flexible (fine-strand): | 25 mm² |
With remote signalling contact: | no |
Signalling at the device: | Optical |
Category type 2: | yes |
Degree of protection (IP): | IP20 |
