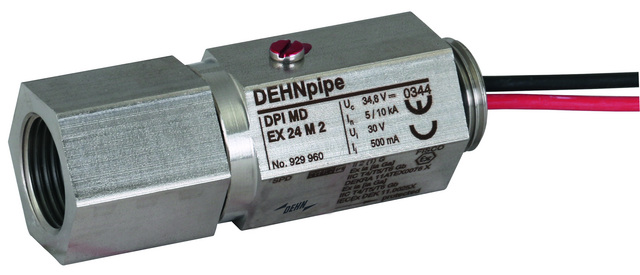

Ogranicznik przepięć DEHNpipe MD EX 24 M 2 DPI MD EX 24 M 2
Information | Value |
---|---|
Supplier | DEHN Polska Sp. z o.o. |
Symbol | 929960 |
GTIN(EAN) | 4013364098145 |
Price unit | piece |
Catalog price | 1 245,22 zł (1 012,37 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Gross weight: | 185,8 g |
ETIM class: | Surge protection device for data networks/MCR-technology |
Nominal voltage DC: | 24.0 - 24.0 V |
Max. continuous voltage AC: | 24.5 V |
Max. continuous voltage DC: | 34.8 V |
Nominal discharge surge current (8/20): | 10 kA |
Lightning impulse current (10/350 µs): | 1 kA |
Nominal load current: | 0.5 A |
Voltage protection level core/core: | 49 V |
Voltage protection level core/earth: | 1000 V |
Limiting frequency: | 7 MHz |
Mounting method: | Other |
Connection 1: | Screw terminal |
Pro-active thermo-control: | no |
With remote signalling contact: | no |
Explosion-tested version: | yes |
Signal disconnection: | no |
Number of conductors (without earthing): | 2 |
Earthing via: | Other |
Degree of protection (IP): | IP67 |
