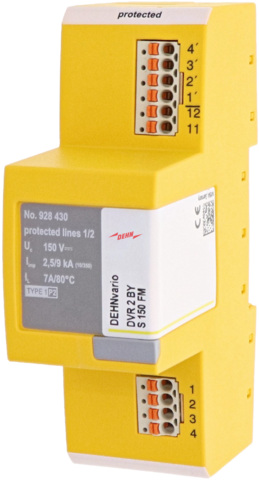

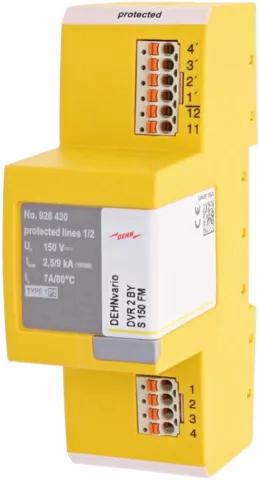

Ogranicznik przepięć DEHNvario 2 BY S 150 FM DVR 2 BY S 150 FM
| Information | Value |
|---|---|
| Supplier | DEHN Polska Sp. z o.o. |
| Symbol | 928430 |
| GTIN(EAN) | 4013364261389 |
| Price unit | piece |
| Catalog price | 1 381,06 zł (1 122,81 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 161,3 g |
| Country of origin | Niemcy |
| ETIM class: | Combined arrester for data networks/MCR-technology |
| Nominal voltage AC: | 100.0 - 100.0 V |
| Max. continuous voltage AC: | 110 V |
| Max. continuous voltage DC: | 150 V |
| Lightning impulse current (10/350 µs): | 2.5 kA |
| Nominal discharge surge current (8/20): | 22.5 kA |
| Nominal load current: | 10 A |
| Voltage protection level core/core: | 400 V |
| Voltage protection level core/earth: | 650 V |
| Limiting frequency: | 1.4 MHz |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Connection 1: | Push-in terminal |
| Pro-active thermo-control: | yes |
| With remote signalling contact: | yes |
| Explosion-tested version: | no |
| Signal disconnection: | no |
| Number of conductors (without earthing): | 4 |
| Earthing via: | DIN rail (top hat rail) |
| Assembly width: | 36 mm |
| Degree of protection (IP): | IP20 |
