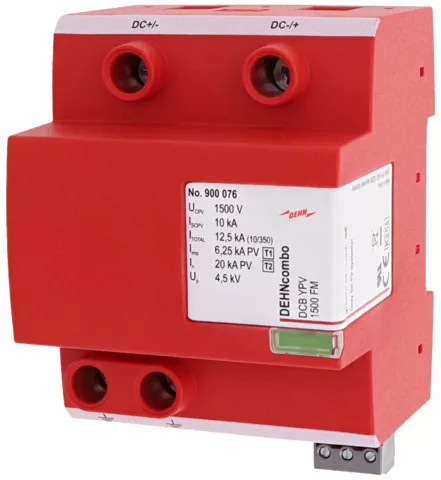

Ogranicznik przepięć DEHNcombo YPV 1500 FM DCB YPV 1500 FM
| Information | Value |
|---|---|
| Supplier | DEHN Polska Sp. z o.o. |
| Symbol | 900076 |
| GTIN(EAN) | 6942299504552 |
| Price unit | piece |
| Catalog price | 1 694,01 zł (1 377,24 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 638,5 g |
| Country of origin | Chiny |
| ETIM class: | Combined arrester for power supply systems |
| System configuration DC: | yes |
| System configuration IT: | no |
| System configuration TN: | no |
| System configuration TN-C: | no |
| System configuration TN-C-S: | no |
| System configuration TN-S: | no |
| System configuration TT: | no |
| System configuration other: | no |
| Number of poles: | 2 |
| Lightning impulse current (10/350 µs): | 12.5 kA |
| Max. PV-voltage: | 1500 V |
| Voltage protection level (DC+ - DC-): | 4.5 kV |
| Voltage protection level (DC+/DC- - PE): | 4.5 kV |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Construction size: | 4 modular spacing |
| Max. conductor cross section solid (solid, stranded): | 35 mm² |
| Max. conductor cross section flexible (fine-strand): | 25 mm² |
| Remote signalling: | yes |
| Signalling at the device: | Optical |
| Test class: | Type 1 + 2 |
| Integrated backup fuse: | no |
| Energy-coordinated protection effect with regard to the terminal equipment: | no |
| Voltage switching spark gap technology: | no |
| Overcurrent protected voltage tapping: | no |
| Degree of protection (IP): | IP20 |
